Beskrivning

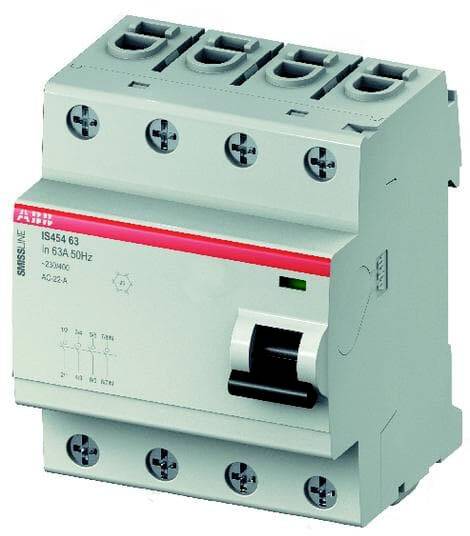

Med lastfrånskiljare SMISSLINE IS404 kan enskilda förbrukare, konsumentgrupper eller hela anläggningsdelar kopplas från eller på vid användning i shockssockesystemet Smissline TP kan lastfrånskiljare upp till 63 A användas istället för inmatningsblock. IS404 har delegenskaper enligt din en 60947-3 och en cylinderhävstångsklämma med 2 klämställ och skydd mot bakstickpropp.
Nominell spänning=240 V, 415 VNominell ström=63 ABrytningsförmåga=6 kA
Med lastfrånskiljare SMISSLINE IS404 kan enskilda förbrukare, konsumentgrupper eller hela anläggningsdelar kopplas från eller på vid användning i shockssockesystemet Smissline TP kan lastfrånskiljare upp till 63 A användas istället för inmatningsblock. IS404 har delegenskaper enligt din en 60947-3 och en cylinderhävstångsklämma med 2 klämställ och skydd mot bakstickpropp.
Nominell spänning=240 V, 415 VNominell ström=63 ABrytningsförmåga=6 kA
- Nominell ström – avrundad
- 63
- Nominell ström
- 63
- Tillverkarfärg
- Svart
- Innehåll
- 1
- Antal poler
- 4
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 4
- Rated permanent current Iu
- 63
- Number of poles
- 4
- Rated operating voltage
- 230-400
- Degree of protection (IP), front side
- IP20
- Number of auxiliary contacts as change-over contact
- 0
- Number of switches
- 4
- Interlockable
- TRUE
- Motor drive integrated
- FALSE
- Type of electrical connection of main circuit
- Rail connection
- Version as emergency stop installation
- FALSE
- Type of control element
- Rocker lever
- Version as main switch
- TRUE
- Version as safety switch
- FALSE
- Version as maintenance-/service switch
- FALSE
- Rated short-time withstand current lcw
- 1.5
- Colour control element
- Grey
- Suitable for floor mounting
- TRUE
- Suitable for front mounting 4-hole
- FALSE
- Suitable for front mounting centre
- FALSE
- Suitable for distribution board installation
- TRUE
- Suitable for intermediate mounting
- TRUE
- Max. rated operation voltage Ue AC
- 415
- Motor drive optional
- FALSE
- Voltage release optional
- FALSE
- Device construction
- Built-in device fixed built-in technique
- Rated permanent current at AC-21, 400 V
- 63
- Version as reversing switch
- FALSE
- Typ av produkt
- Lastdelningsbrytare
